Cutter

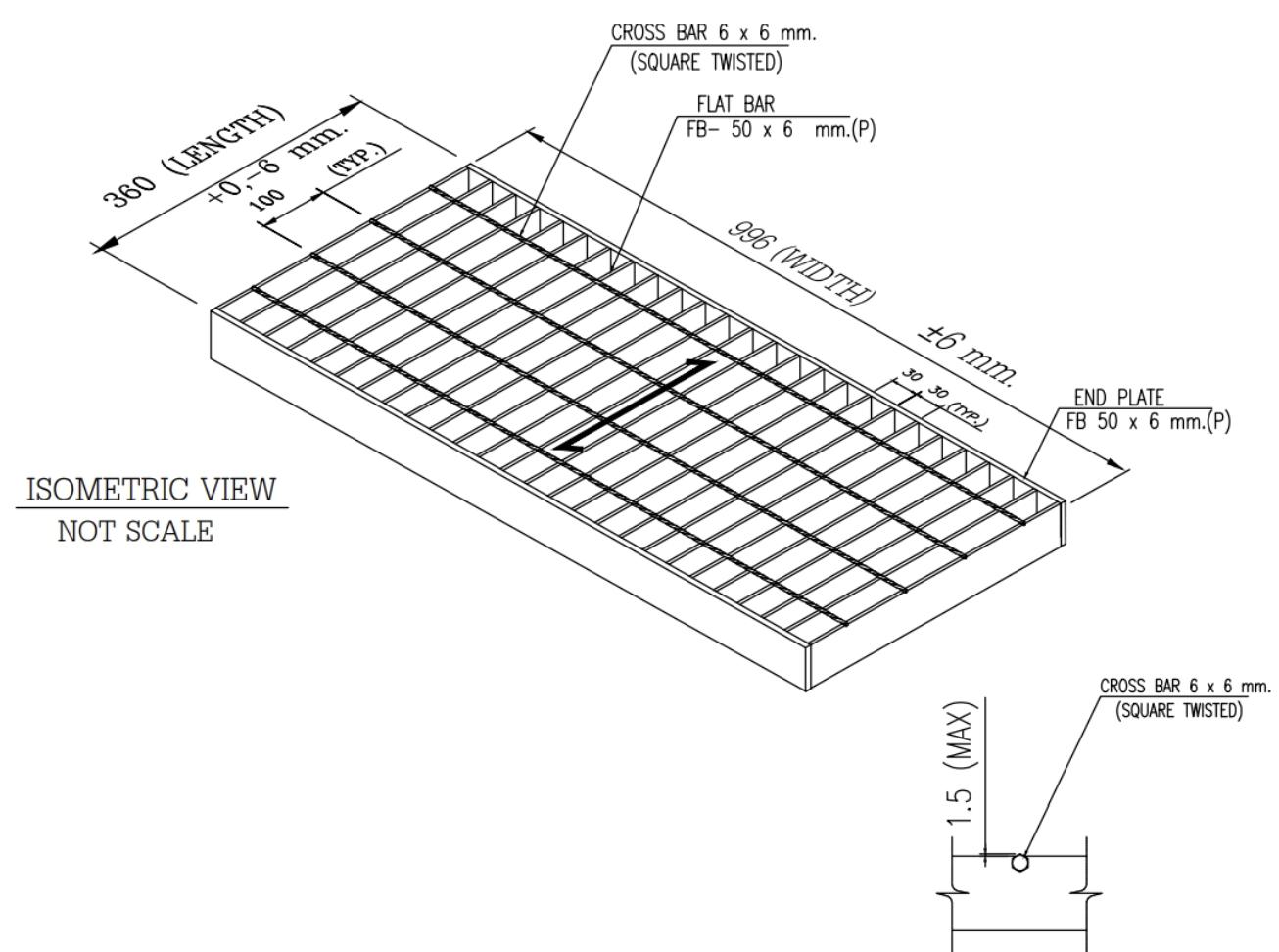

GT:1. Steel Galvanized Grating Size : 360 x 1000 mm.( Wide x Length )

- Type GA: 506/30 mm. ( Plain )
- Flat Bar 50x6 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x6 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

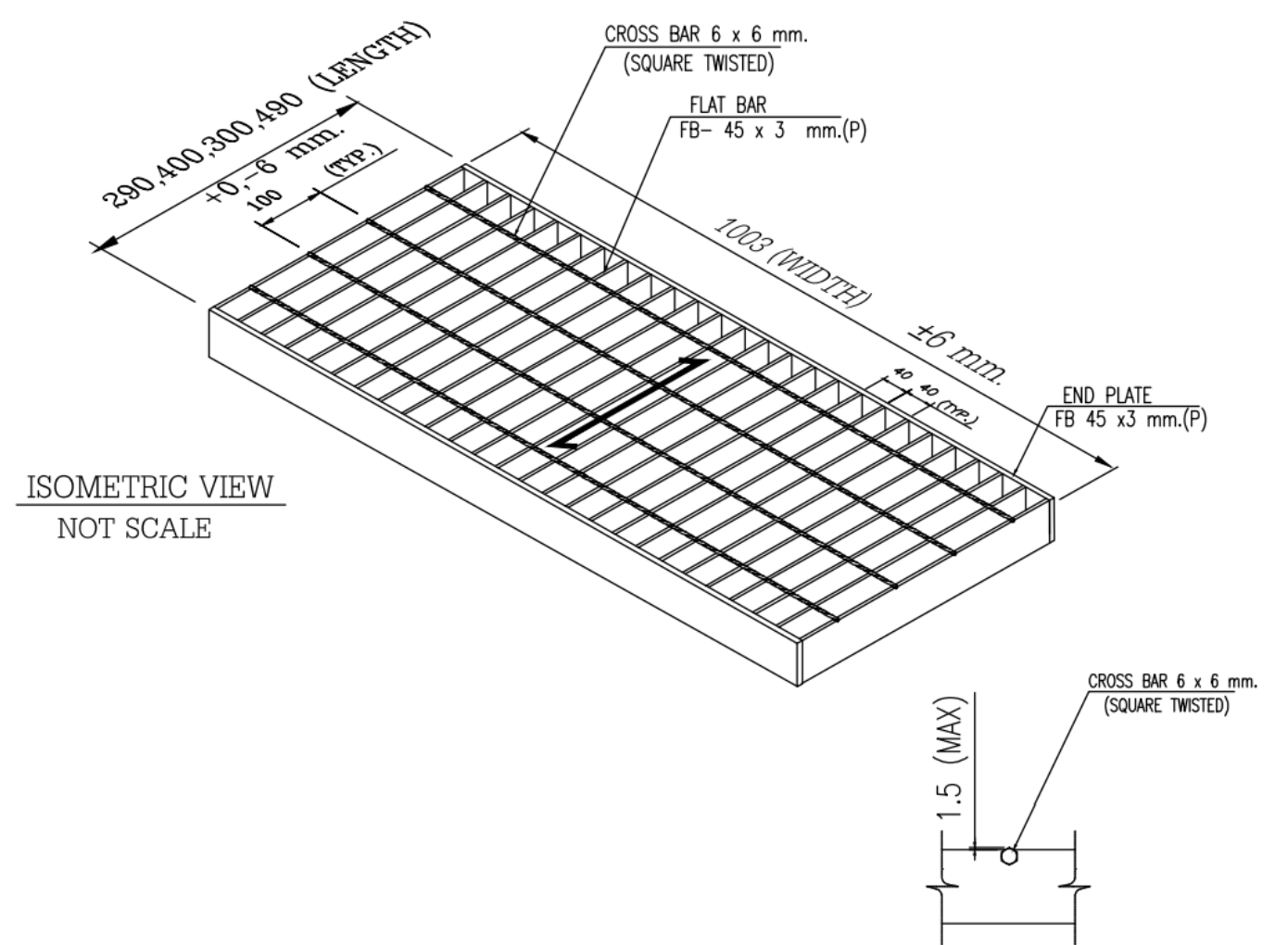

GT:2. Steel Galvanized Grating Size : 400 x 1000 mm.( Wide x Length )

- Type GA: 453/40 mm. ( Plain )
- Flat Bar 45x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

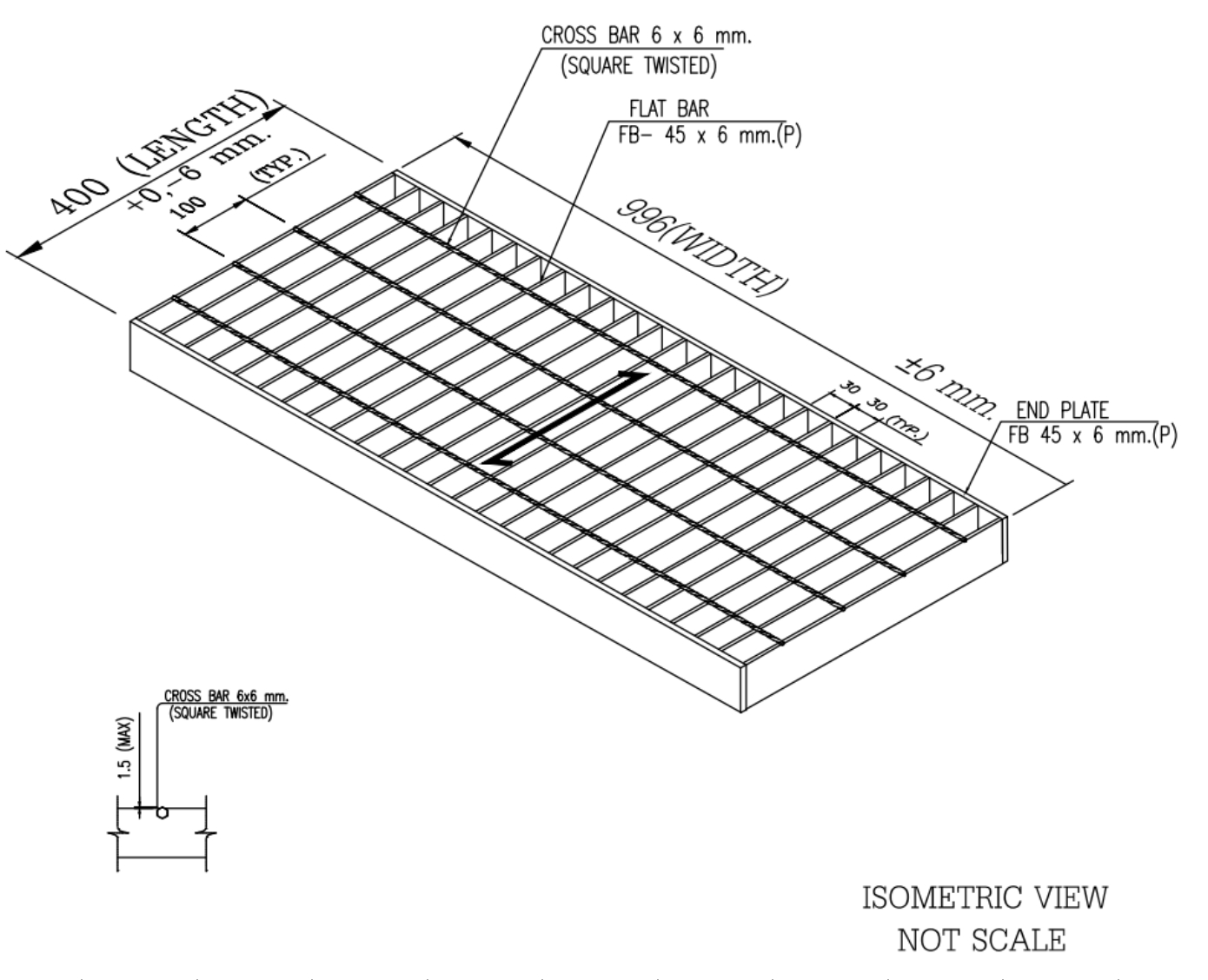

GT:3. Steel Galvanized Grating Size : 400 x 1000 mm.( Wide x Length )

- Type GA: 456/30 mm. ( Plain )
- Flat Bar 45x3 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x6 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

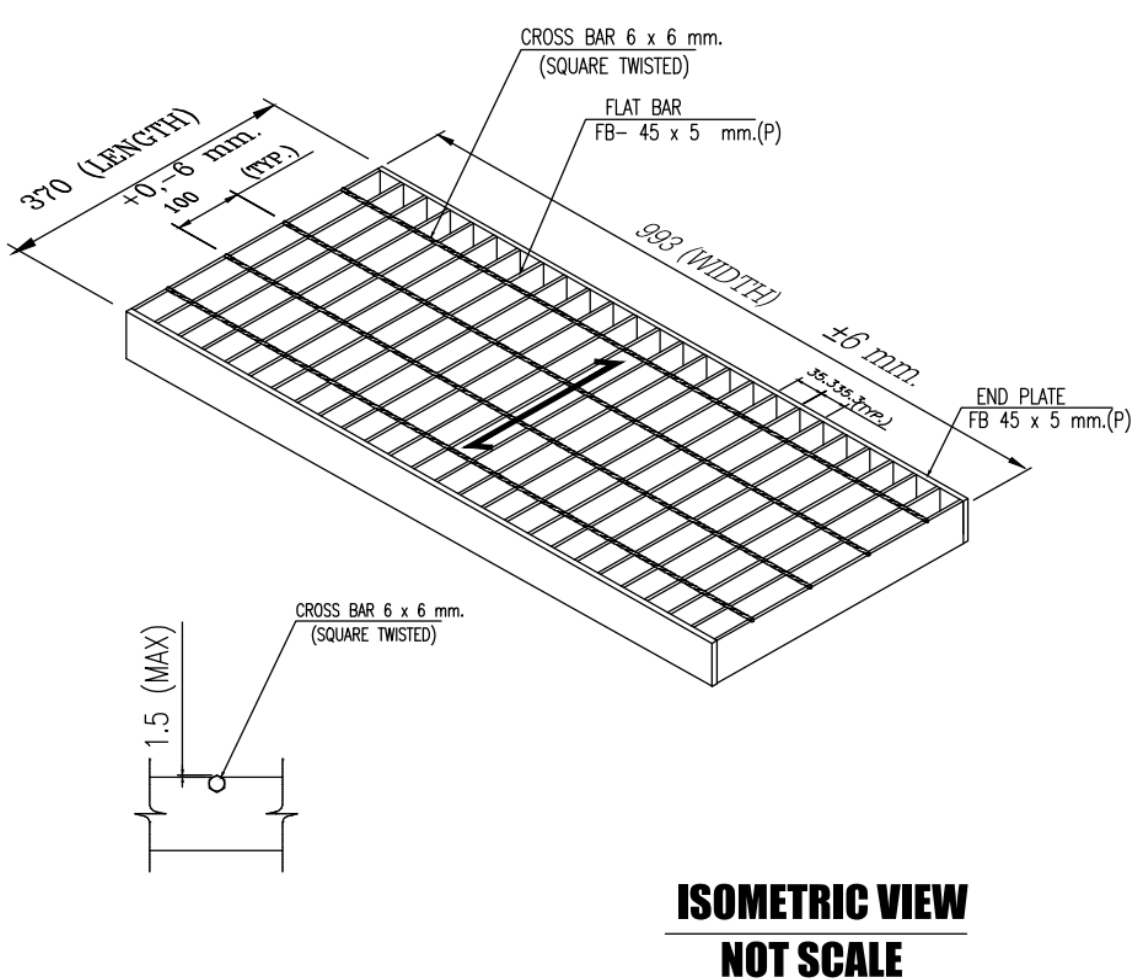

GT:4. Steel Galvanized Grating Size : 370 x 1000 mm.( Wide x Length )

- Type GA: 455/33 mm. ( Plain )
- Flat Bar 45x5 mm.@ 33 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

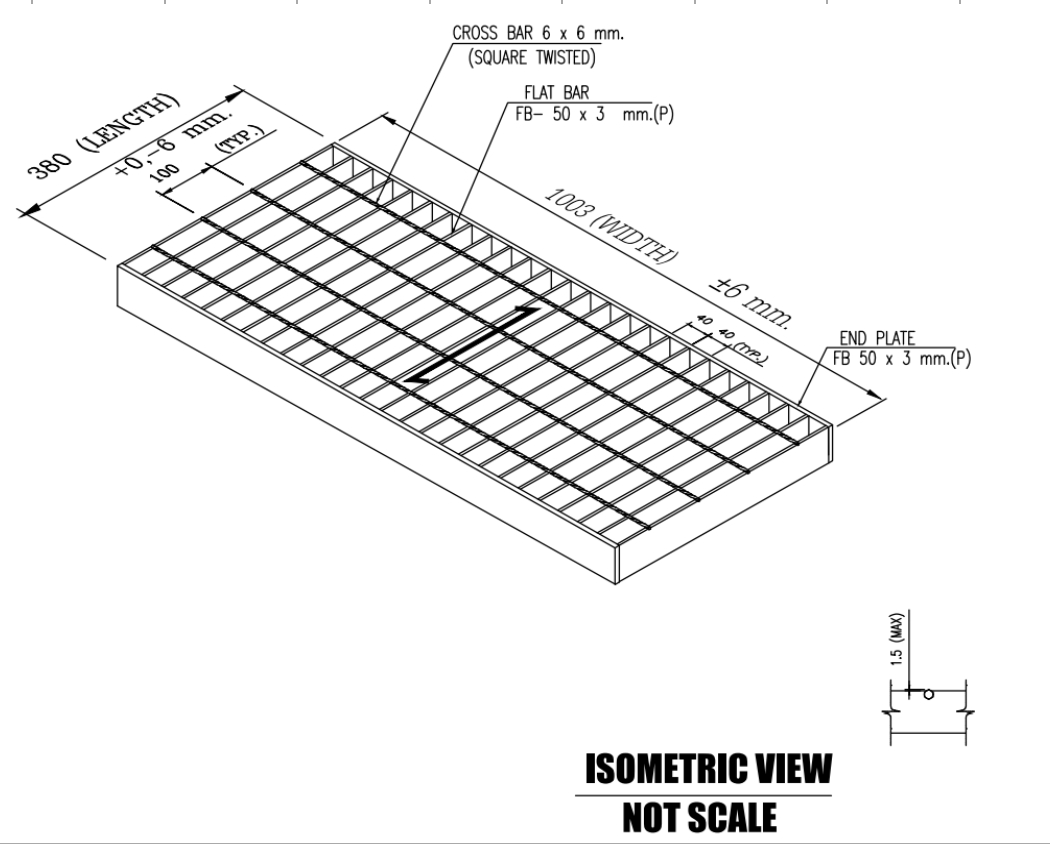

GT:5. Steel Galvanized Grating Size : 380 x 1000 mm.( Wide x Length )

- Type GA: 503/40 mm. ( Plain )
- Flat Bar 50x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

GT:6. Steel Galvanized Grating Size : 380 x 1000 mm.( Wide x Length )

- Type GA: 503/40 mm. ( Plain )
- Flat Bar 50x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

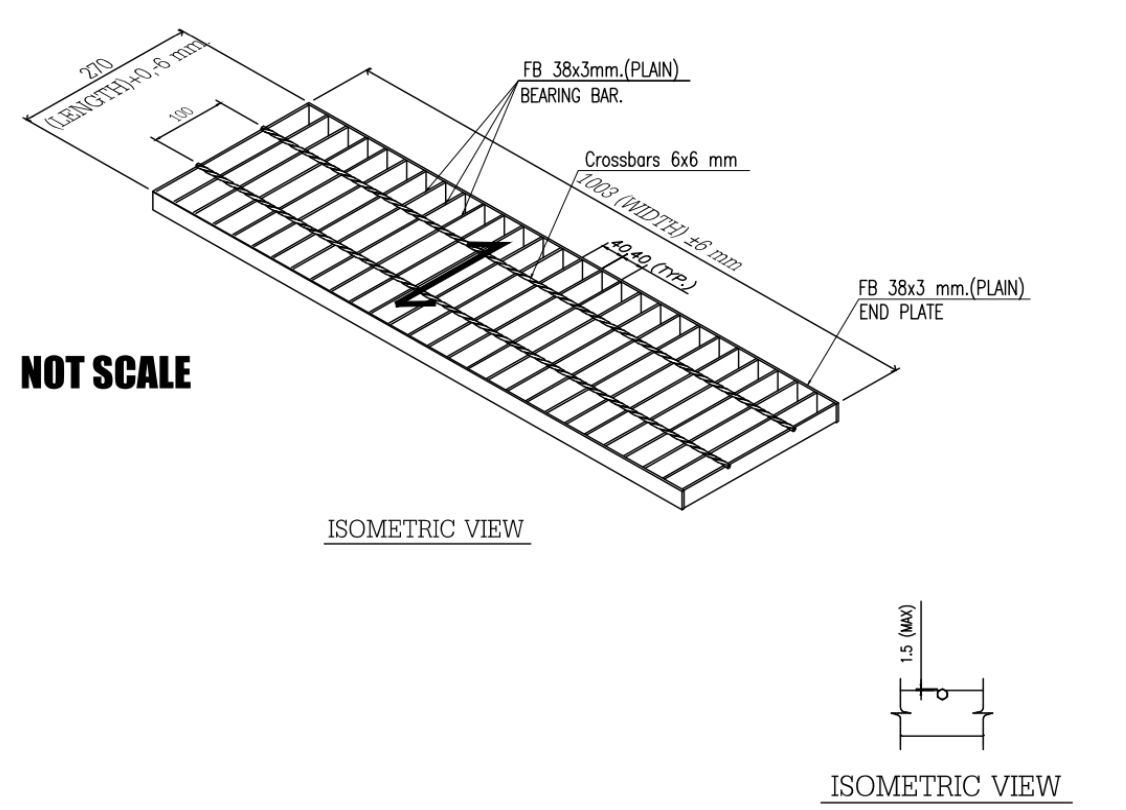

GT:7. Steel Galvanized Grating Size : 270 x 1000 mm.( Wide x Length )

- Type GA: 383/40 mm. ( Plain )
- Flat Bar 38x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 38x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

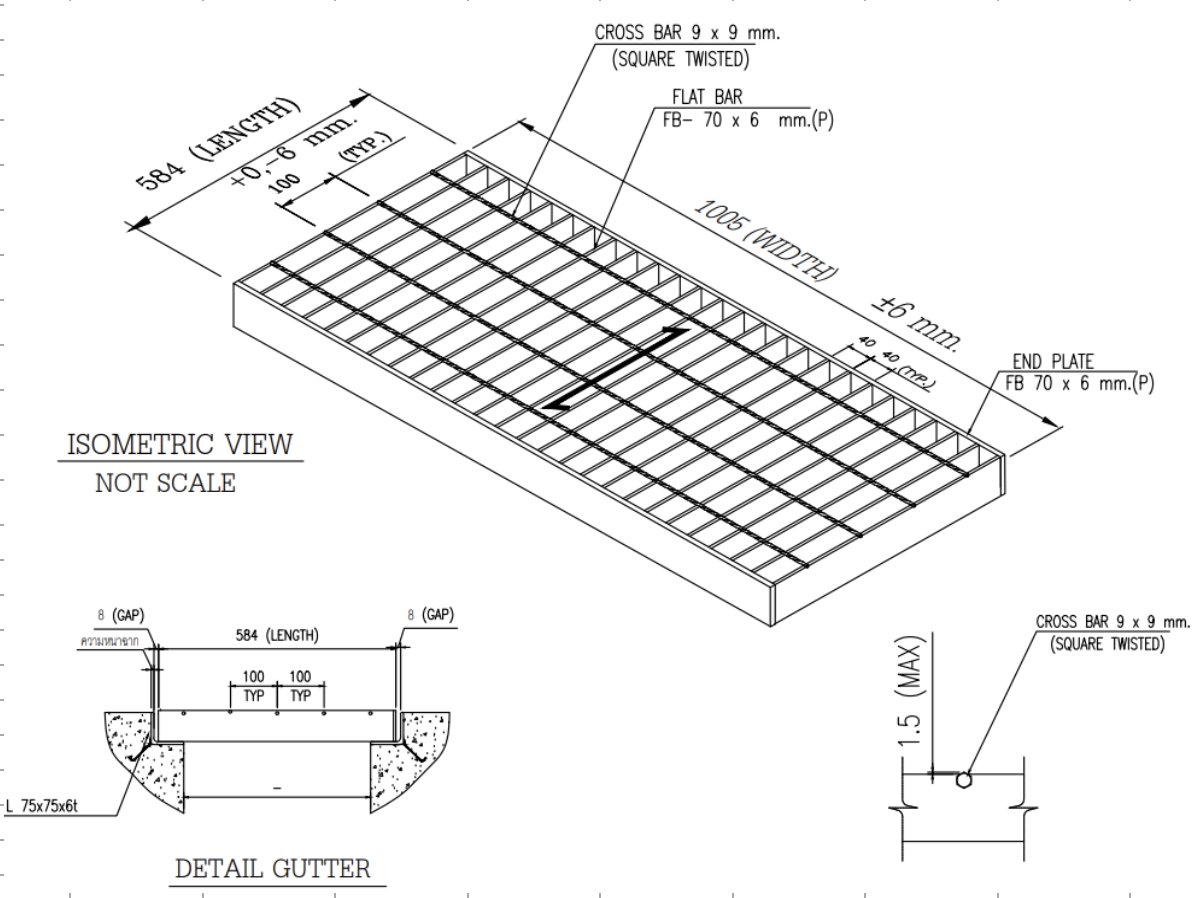

GT:8. Steel Galvanized Grating Size : 584 x 1000 mm.( Wide x Length )

- Type GA: 706/40 mm. ( Plain )
- Flat Bar 70x6 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 70x6 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

GT:9. Steel Galvanized Grating Size : 300 x 1000 mm.( Wide x Length )

- Type GA: 505/30 mm. ( Plain )
- Flat Bar 50x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

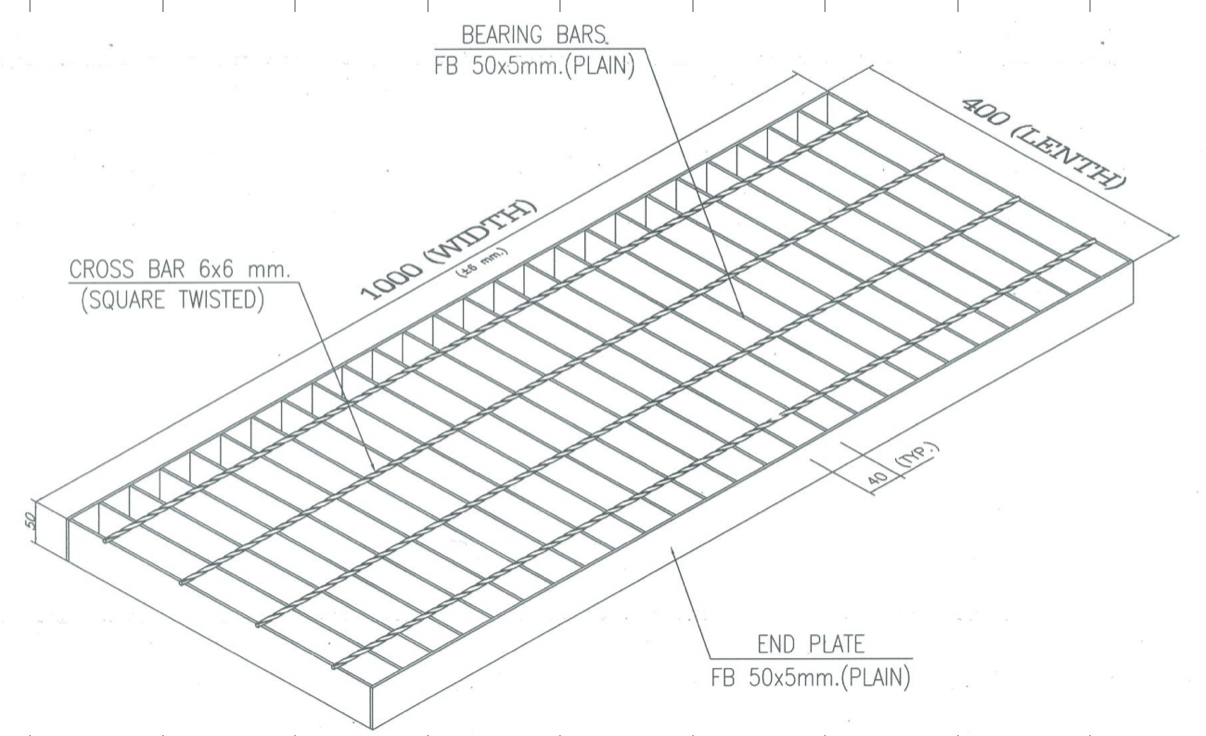

GT:10. Steel Galvanized Grating Size : 400 x 1000 mm.( Wide x Length )

- Type GA: 505/40 mm. ( Plain )
- Flat Bar 50x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

GT:11. Steel Galvanized Grating Size : 400 x 1000 mm.( Wide x Length )

- Type GA: 505/30 mm. ( Plain )
- Flat Bar 50x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

GT:12. Steel Galvanized Grating Size : 400 x 1500 mm.( Wide x Length )

- Type GA: 253/40 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

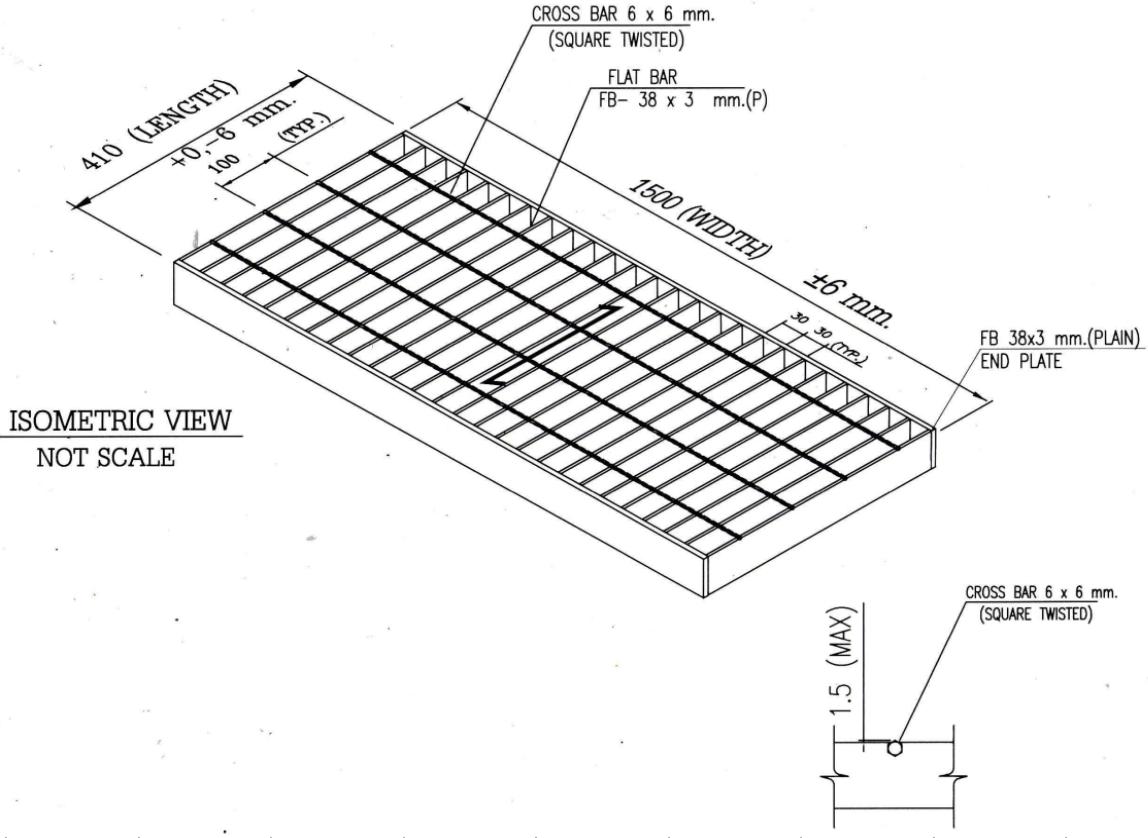

GT:13. Steel Galvanized Grating Size : 410 x 1500 mm.( Wide x Length )

- Type GA: 383/30 mm. ( Plain )
- Flat Bar 38x3 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 38x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

GT:14. Steel Galvanized Grating Size : 600 x 1200 mm.( Wide x Length )

- Type GA: 455/40 mm. ( Plain )
- Flat Bar 45x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

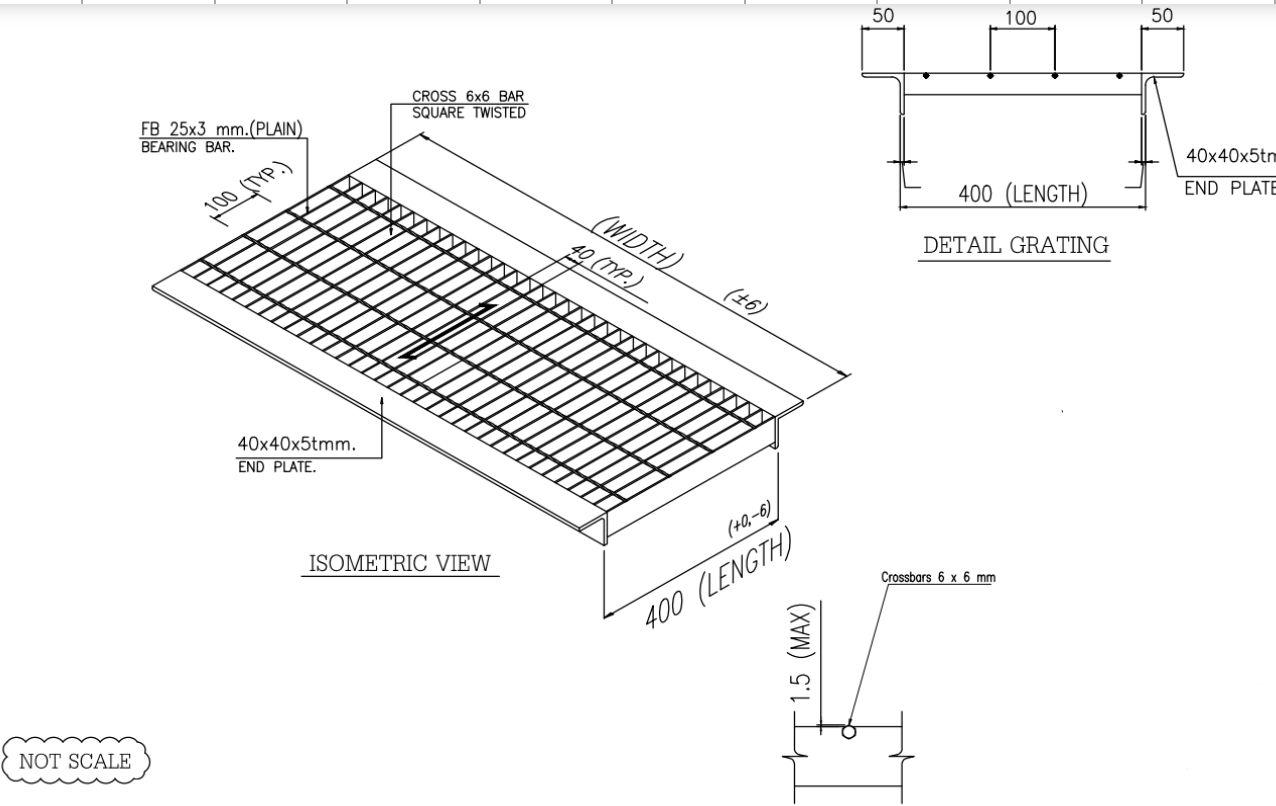

GT:15. Steel Galvanized Grating Size : 400 x 1000 mm.( Wide x Length )
With L-Angle Support

- Type GA: 253/40 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With L-Angle 40x40x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

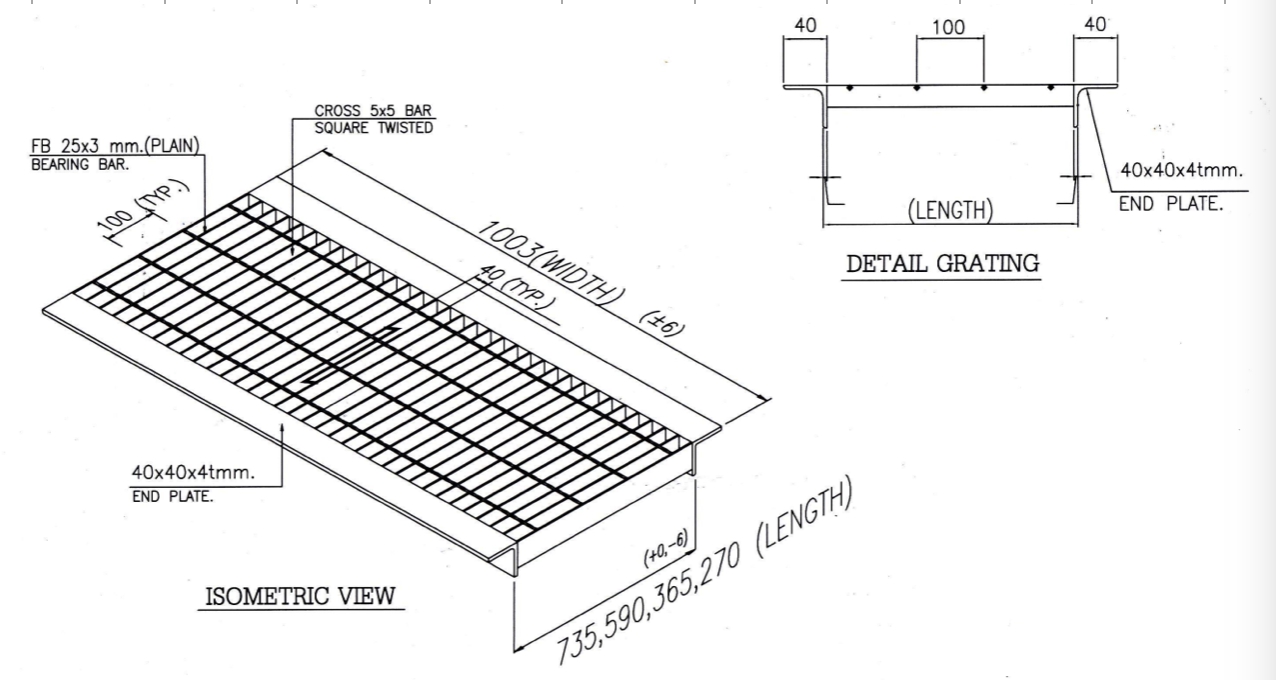

GT:16. Steel Galvanized Grating Size : 590 x 1000 mm.( Wide x Length )
With L-Angle Support

- Type GA: 253/40 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With L-Angle 40x40x4 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

GT:17. Steel Galvanized Grating Size : 1000 x 1000 mm.( Wide x Length )
With L-Angle Support

- Type GA: 255/30 mm. ( Plain )
- Flat Bar 25x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar 25x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

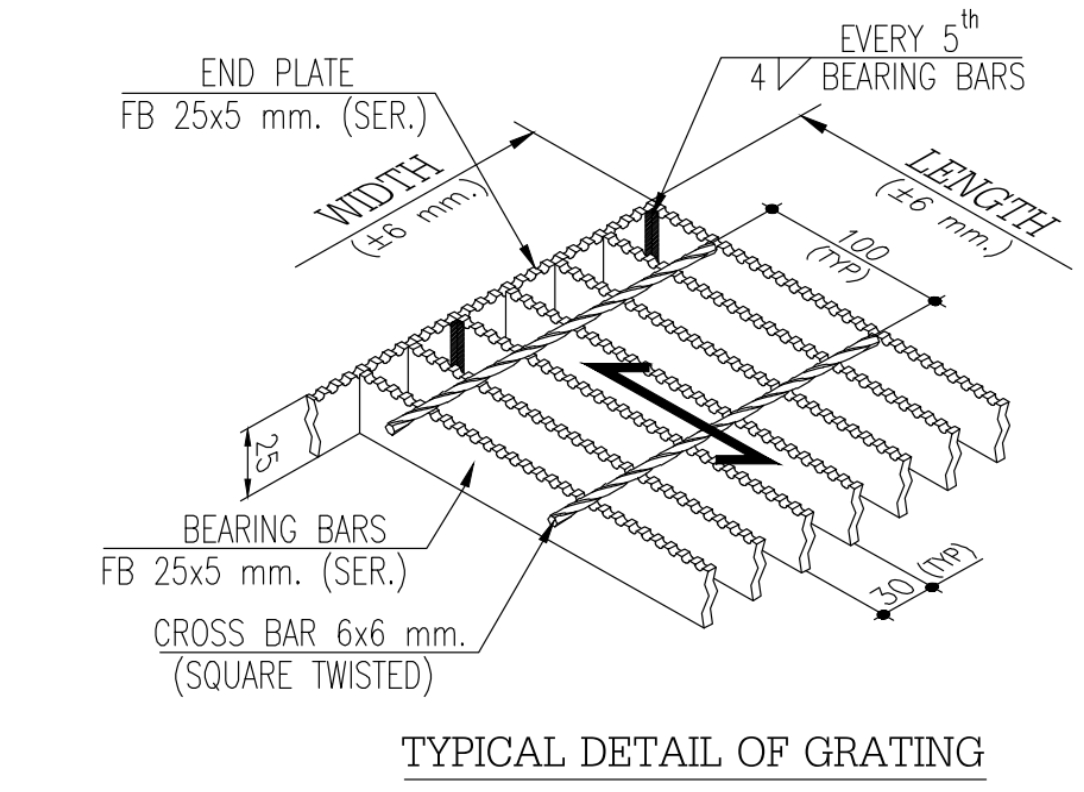

( Serrated : Punching )


manhole

mh:1. Steel Galvanized Grating Size : 700 x 700 mm.( Wide x Length )

- Type GA: 383/30 mm. ( Plain )
- Flat Bar 38x3 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 38x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

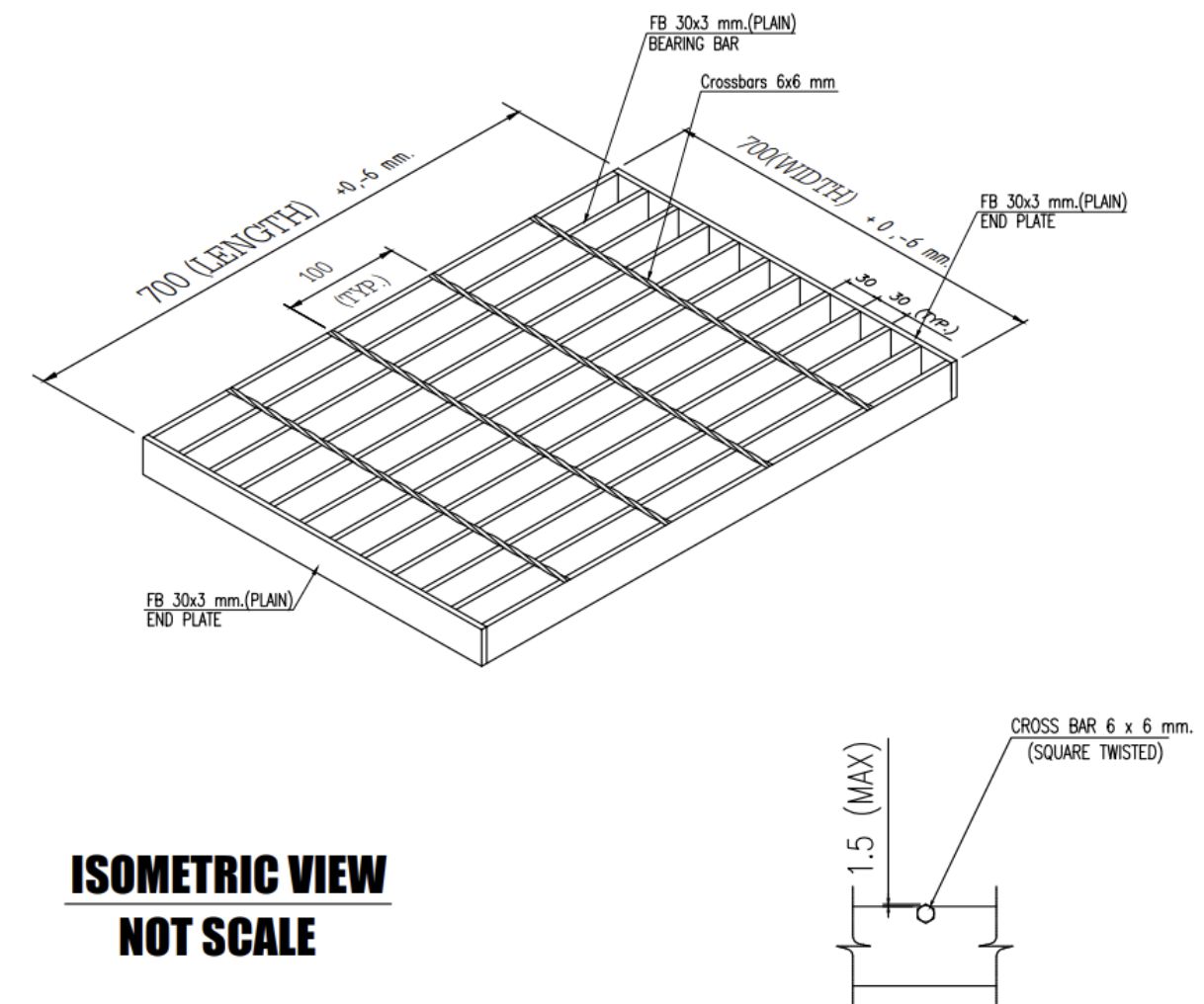

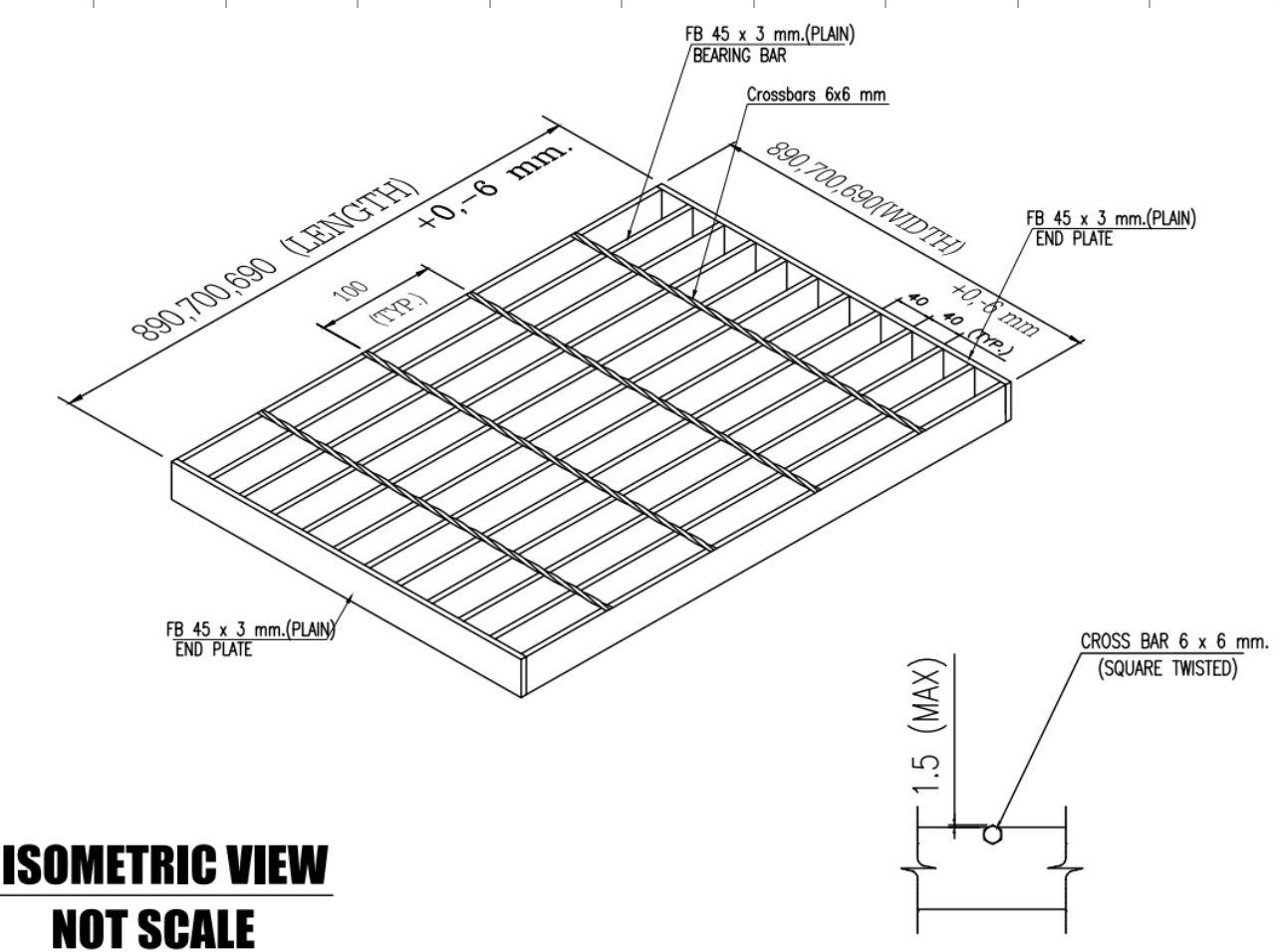

mh:2. Steel Galvanized Grating Size : 700 x 700 mm.( Wide x Length )

- Type GA: 453/40 mm. ( Plain )
- Flat Bar 45x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

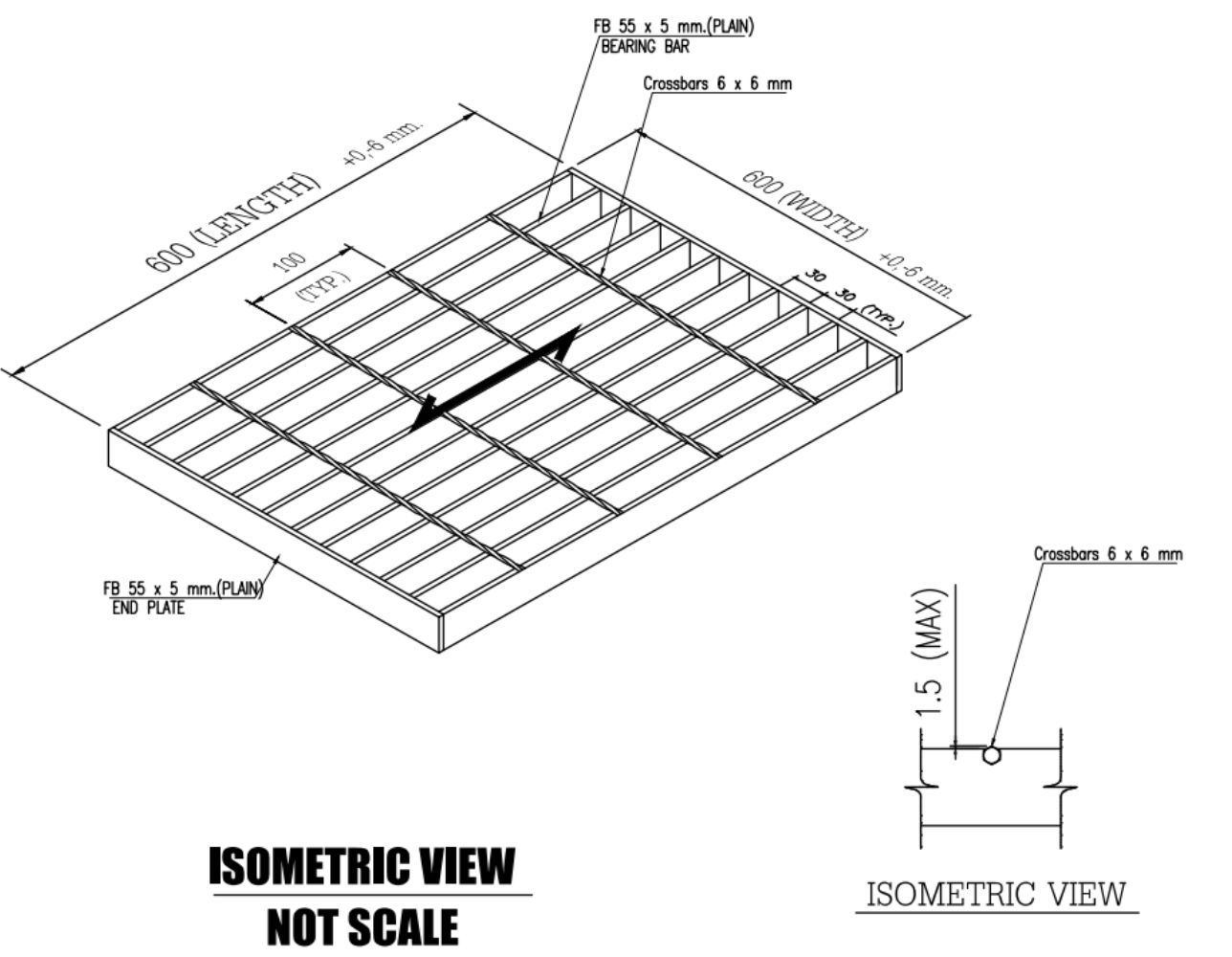

mh:3. Steel Galvanized Grating Size : 600 x 600 mm.( Wide x Length )

- Type GA: 555/40 mm. ( Plain )
- Flat Bar 55x6 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 55x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

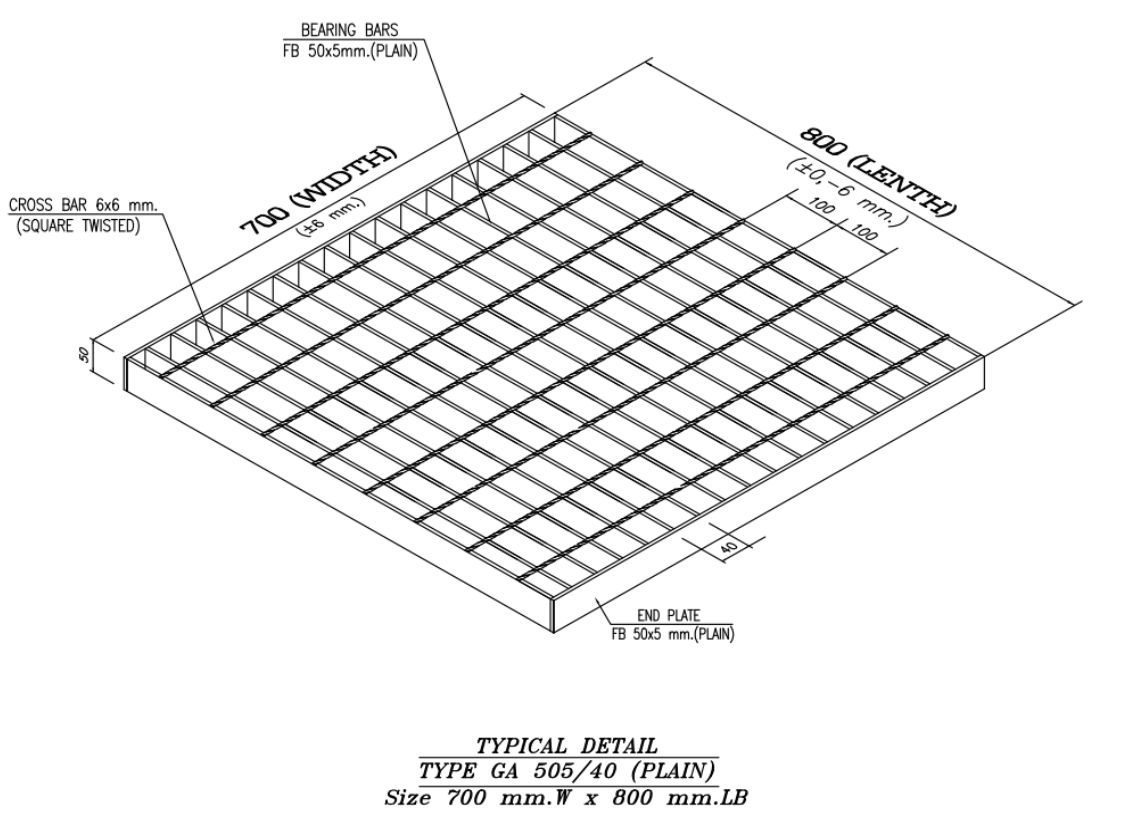

mh:4. Steel Galvanized Grating Size : 700 x 800 mm.( Wide x Length )

- Type GA: 505/40 mm. ( Plain )
- Flat Bar 50x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 50x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

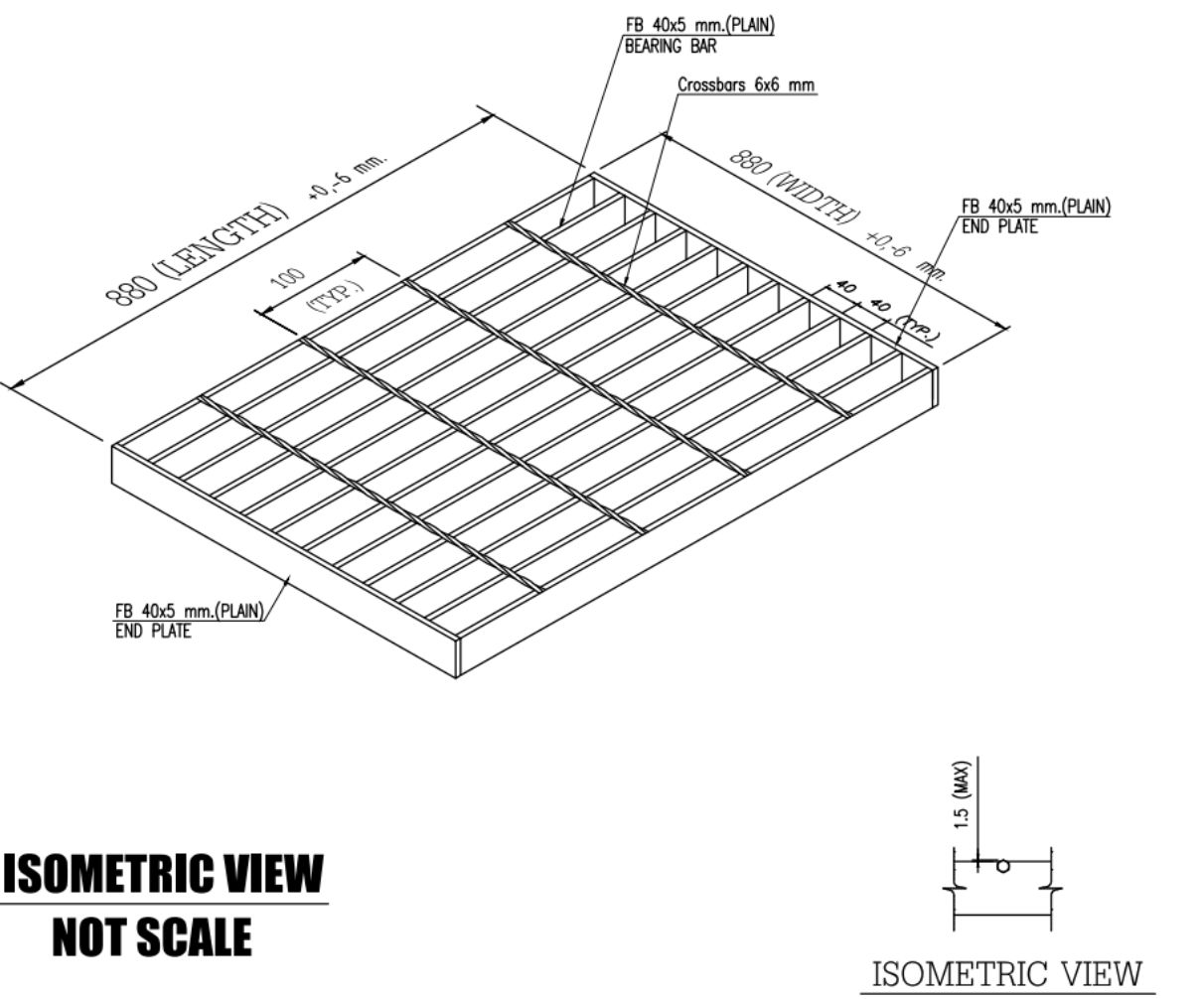

mh:5. Steel Galvanized Grating Size : 880 x 880 mm.( Wide x Length )

- Type GA: 405/40 mm. ( Plain )
- Flat Bar 40x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 40x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

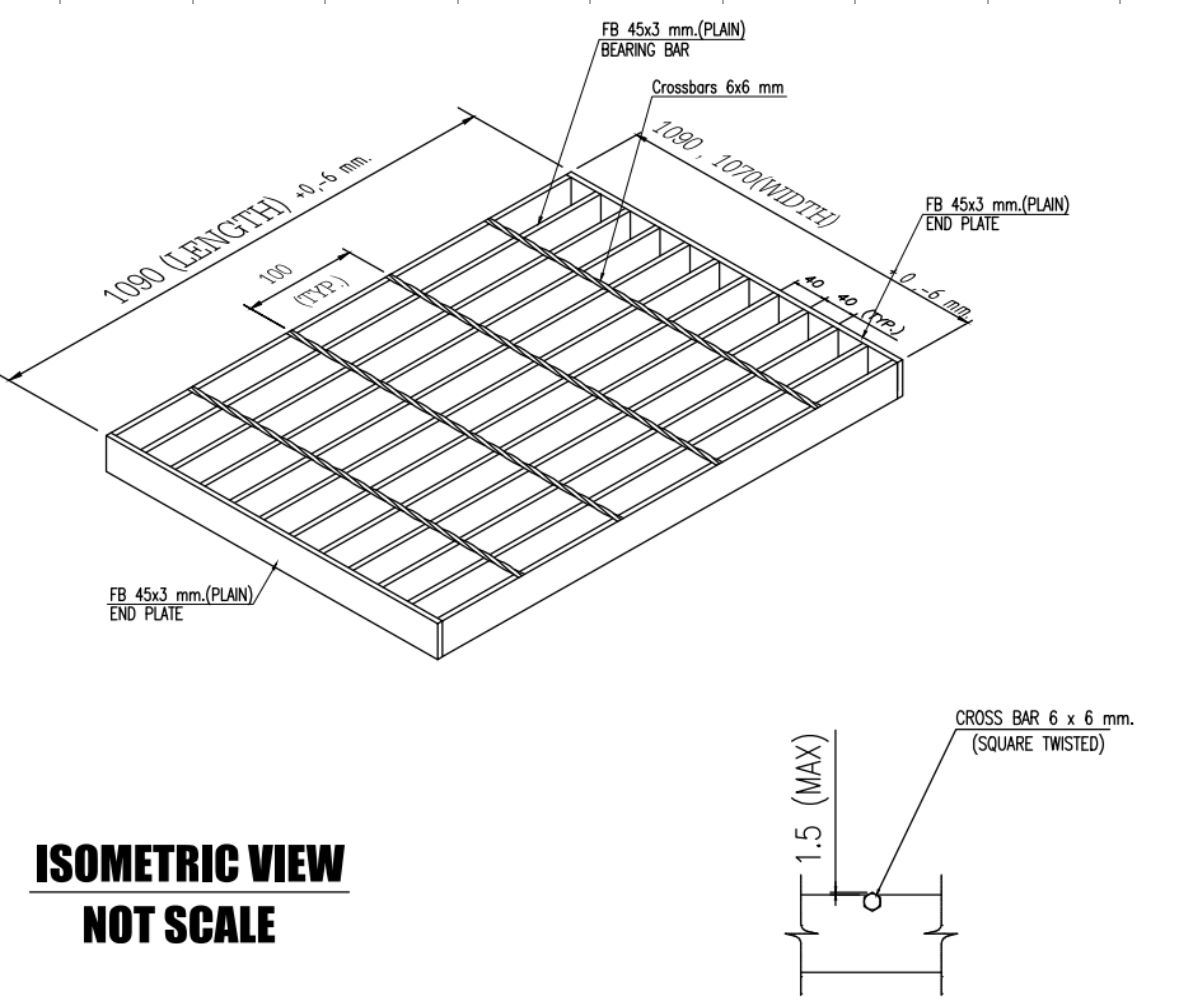

mh:6. Steel Galvanized Grating Size : 1000 x 1000 mm.( Wide x Length )

- Type GA: 453/40 mm. ( Plain )
- Flat Bar 45x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

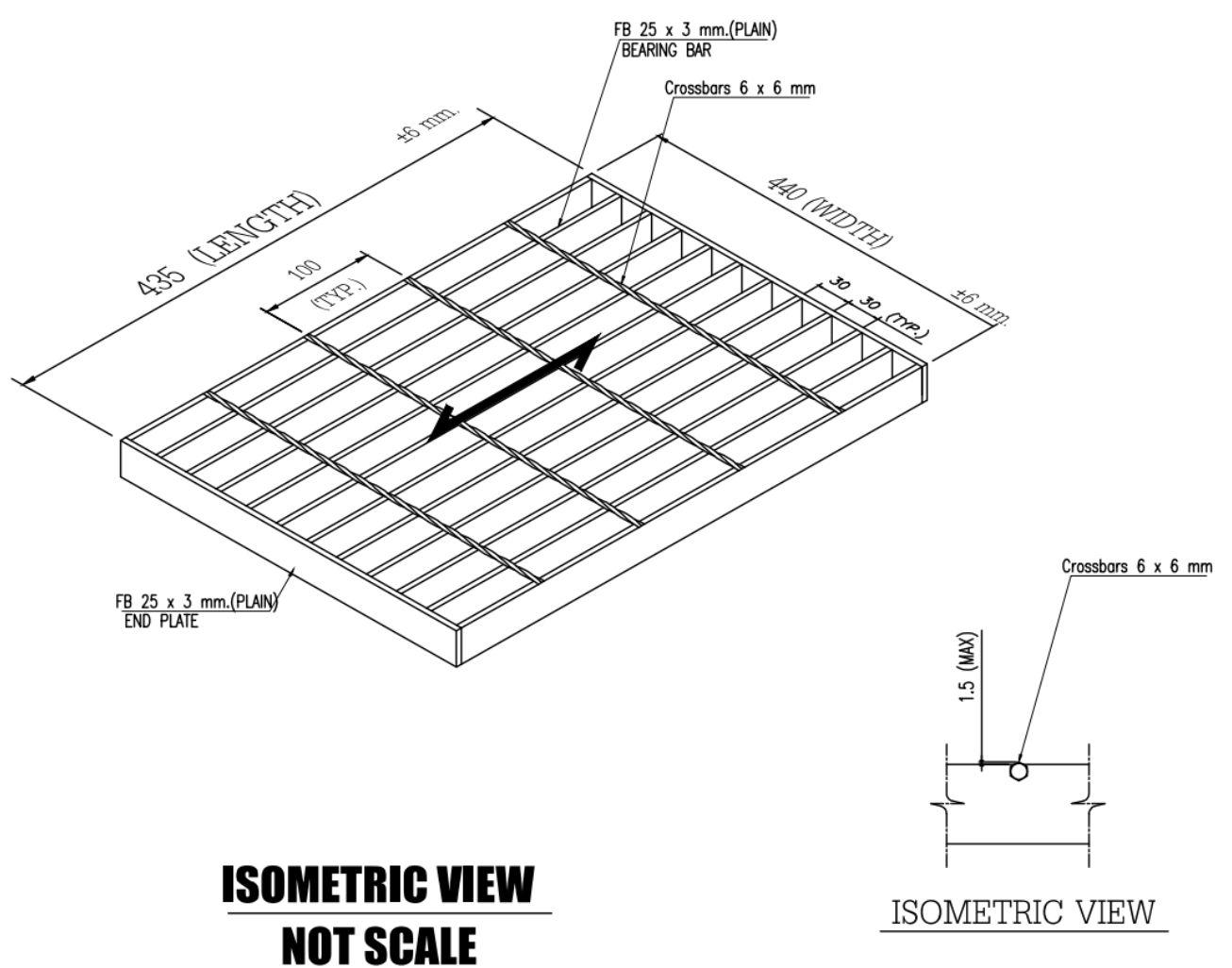

mh:7. Steel Galvanized Grating Size : 435 x 440 mm.( Wide x Length )

- Type GA: 253/30 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

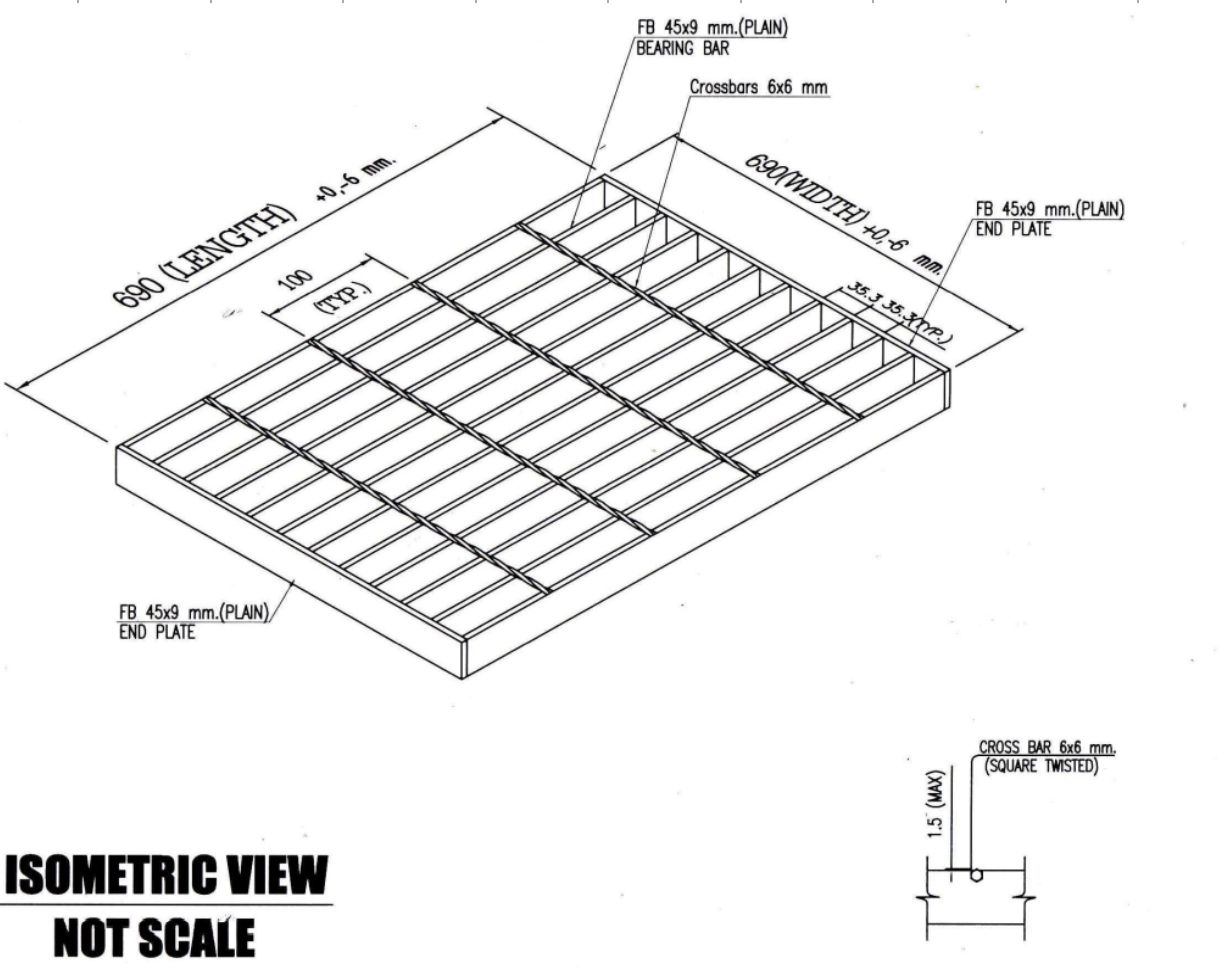

mh:8. Steel Galvanized Grating Size : 690 x 690 mm.( Wide x Length )

- Type GA: 459/33 mm. ( Plain )
- Flat Bar 45x9 mm.@ 33 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x9 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

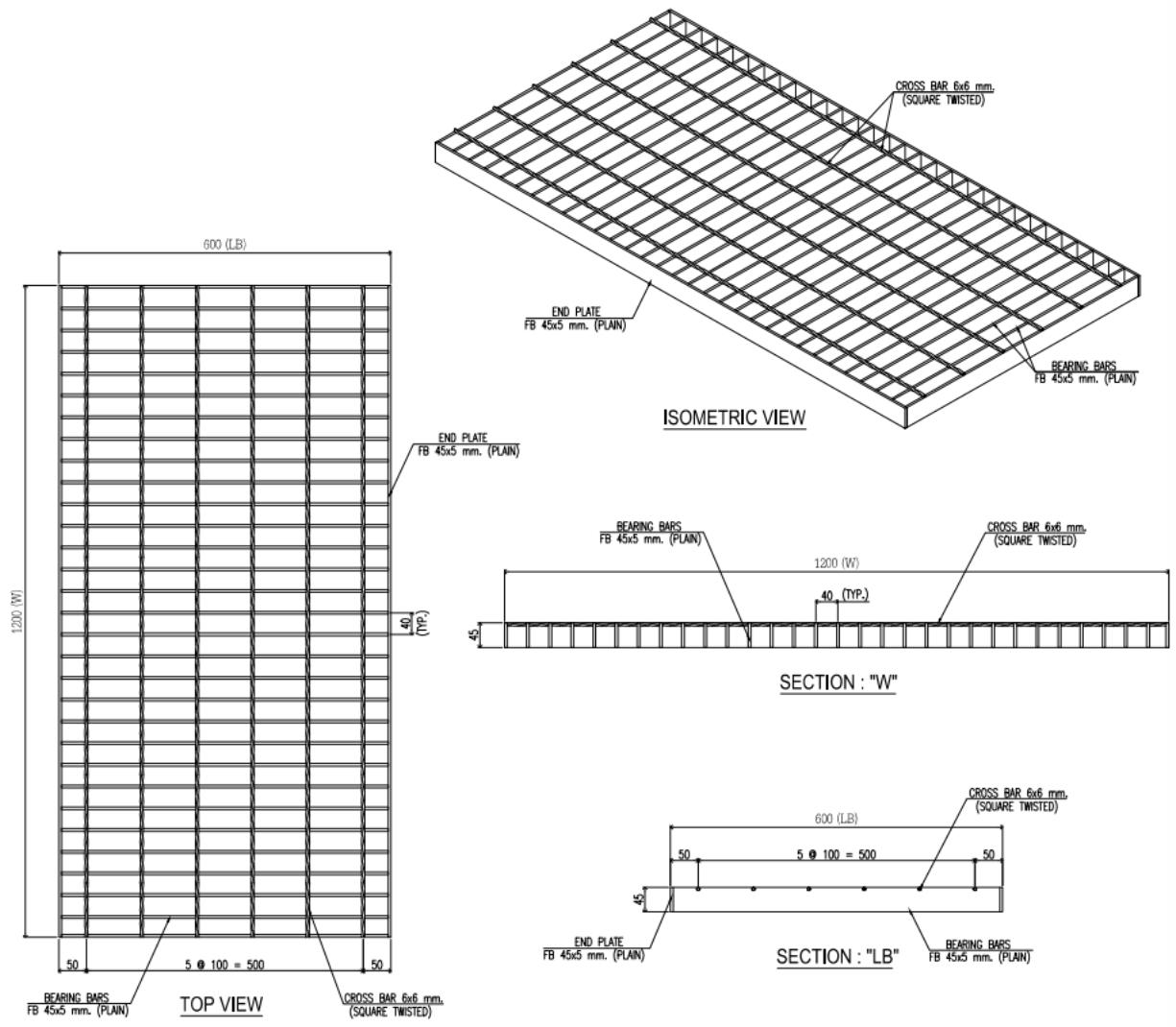

mh:9. Steel Galvanized Grating Size : 600 x 1200 mm.( Wide x Length )

- Type GA: 455/40 mm. ( Plain )
- Flat Bar 45x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 45x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

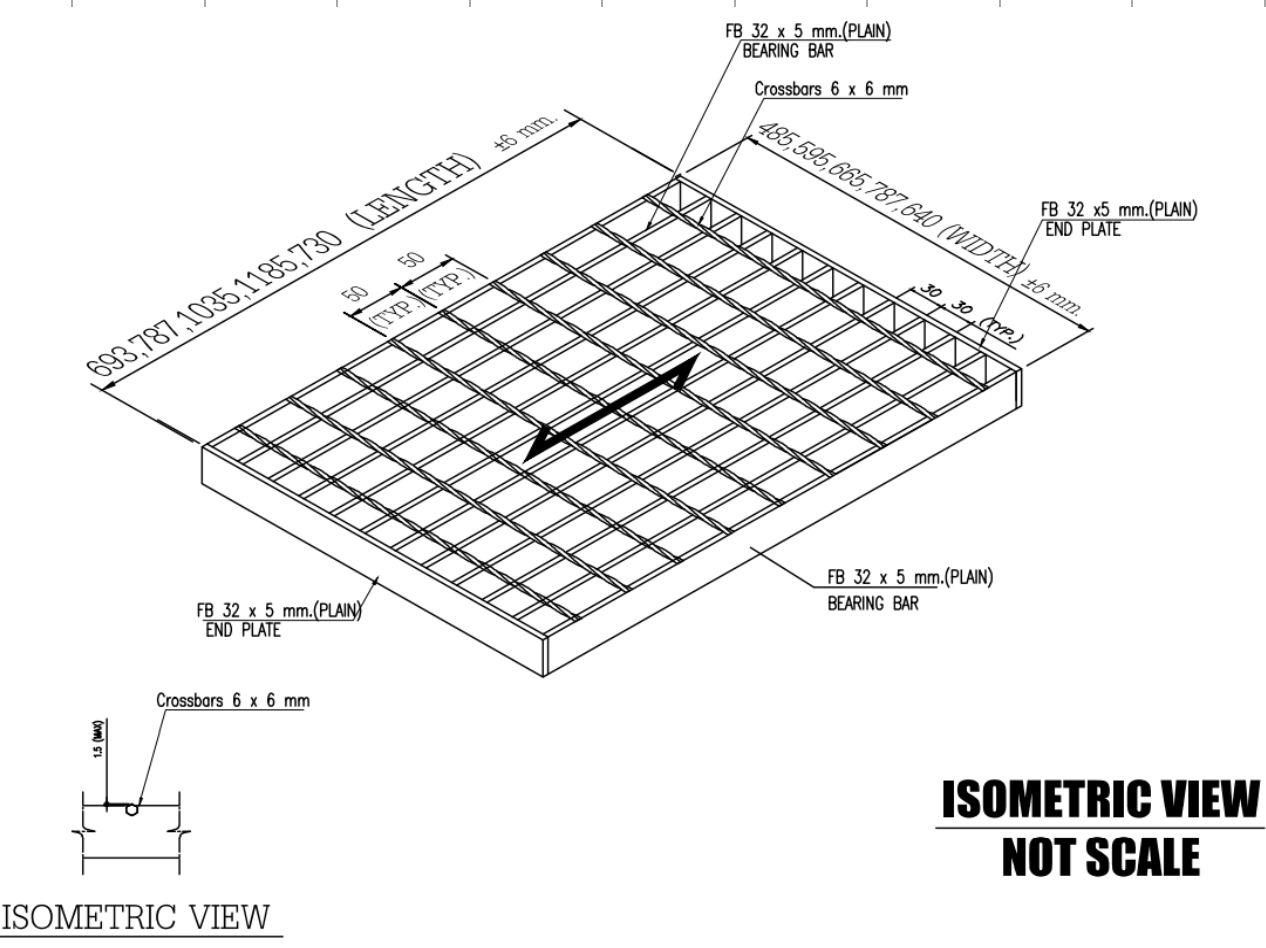

mh:10. Steel Galvanized Grating Size : 485 x 693 mm.( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 32x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

mh:11. Steel Galvanized Grating Size : 250 x 1000 mm.( Wide x Length )

- Type GA: 253/40 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load
With Full Top Cover Checkered Plate Thk.2 mm.

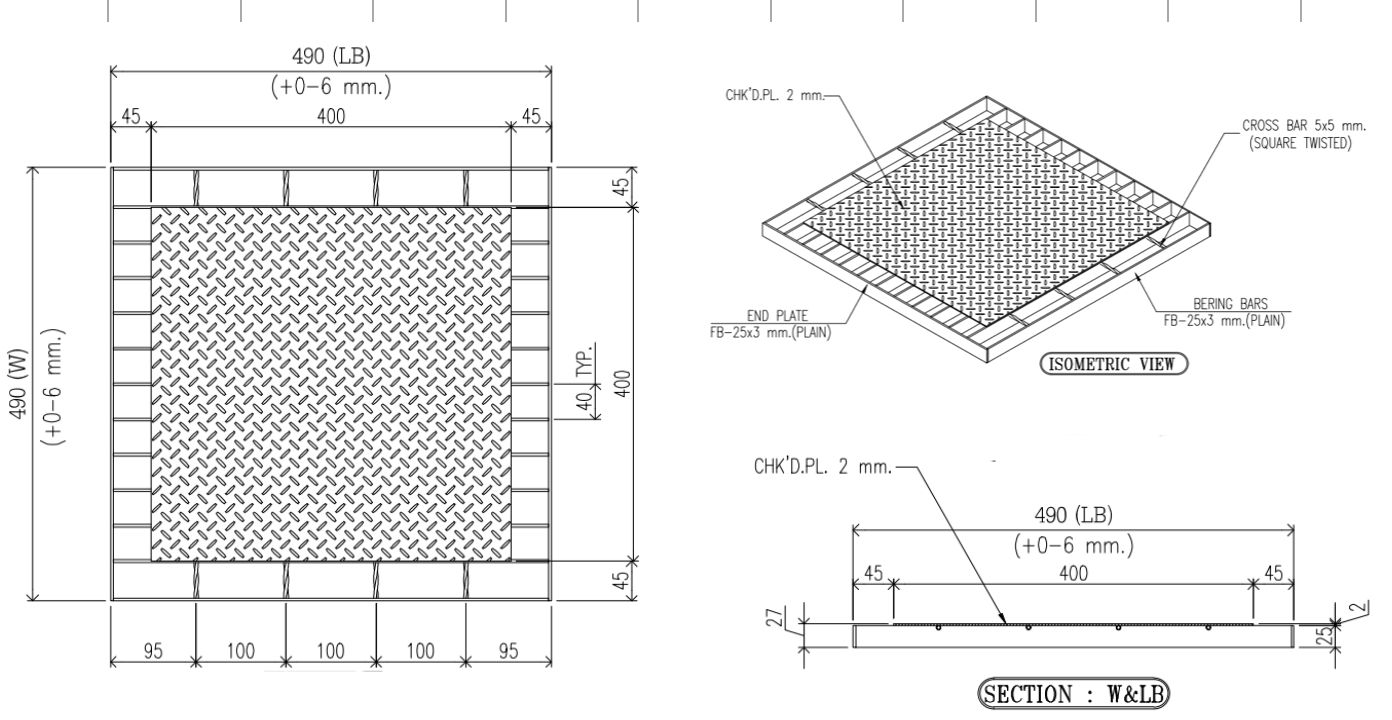

mh:12. Steel Galvanized Grating Size : 490 x 490 mm.( Wide x Length )

- Type GA: 253/40 mm. ( Plain )
- Flat Bar 25x3 mm.@ 40 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x3 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load
With Full Top Cover Checkered Plate Thk.2 mm.


STAIR TREAD

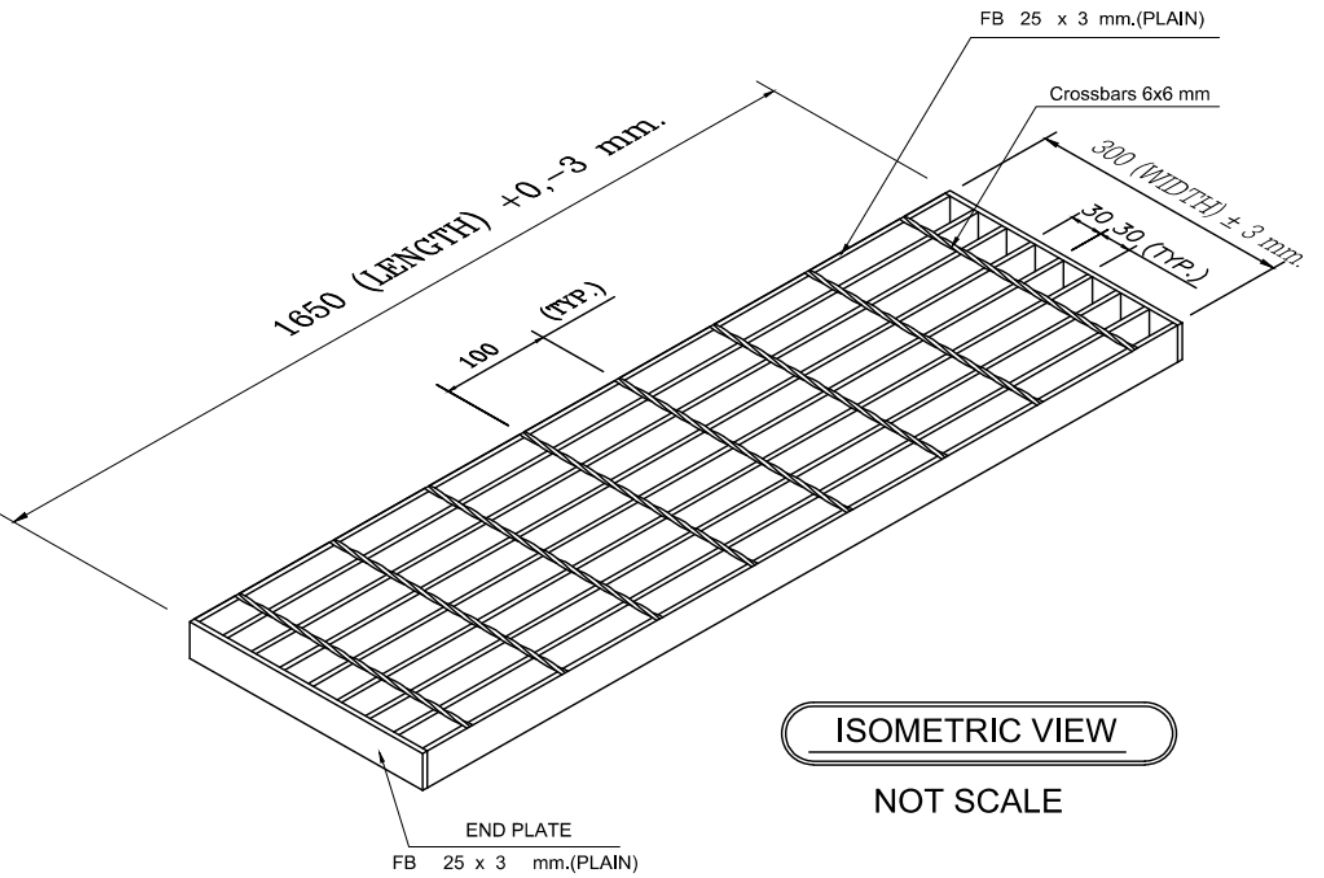

ST:1. Stair Tread Steel Galvanized Grating Size: 300x1650 mm.
( Wide x Length )

- Type GA: 255/30 mm. ( Plain )
- Flat Bar 25x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Light Duty Load

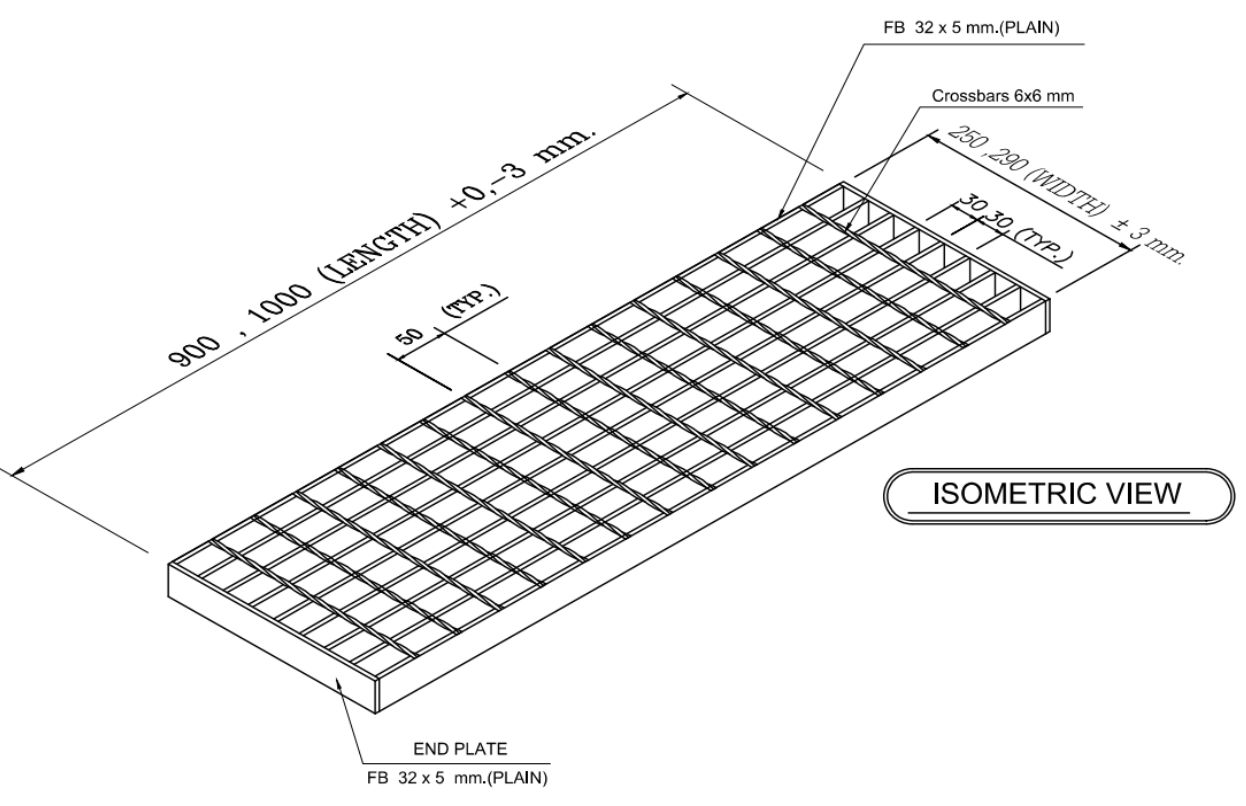

ST:2. Stair Tread Steel Galvanized Grating Size: 250x1000 mm.
( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 32x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

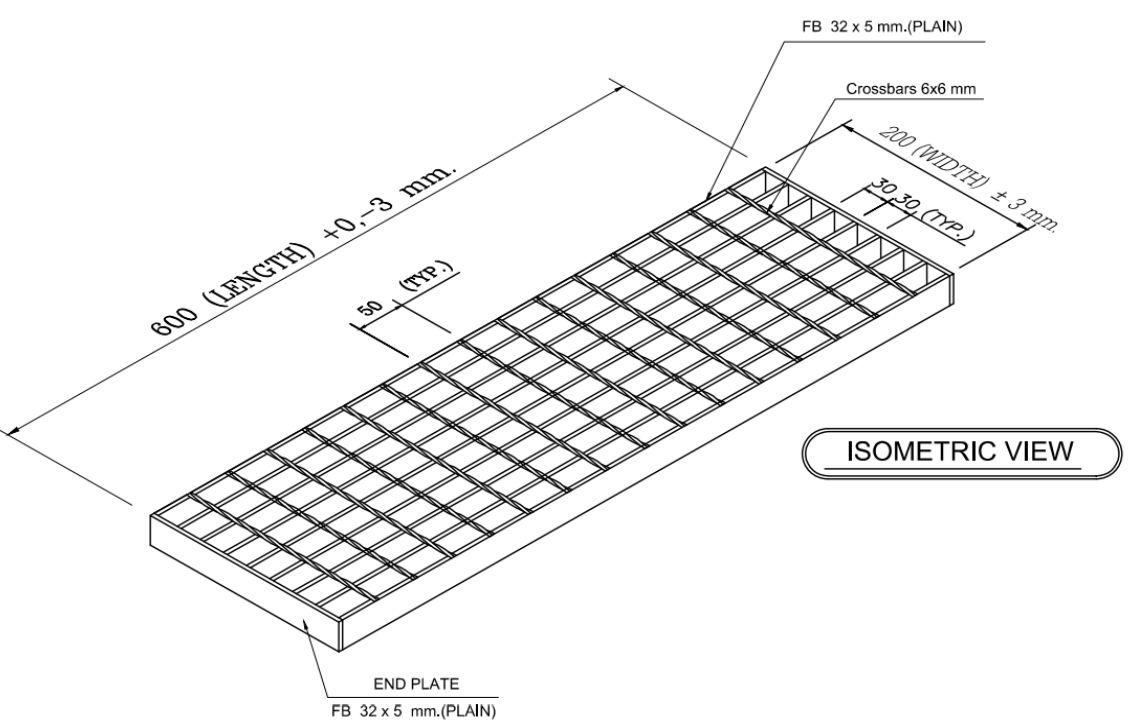

ST:3. Stair Tread Steel Galvanized Grating Size: 200x600 mm.
( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 50 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 32x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

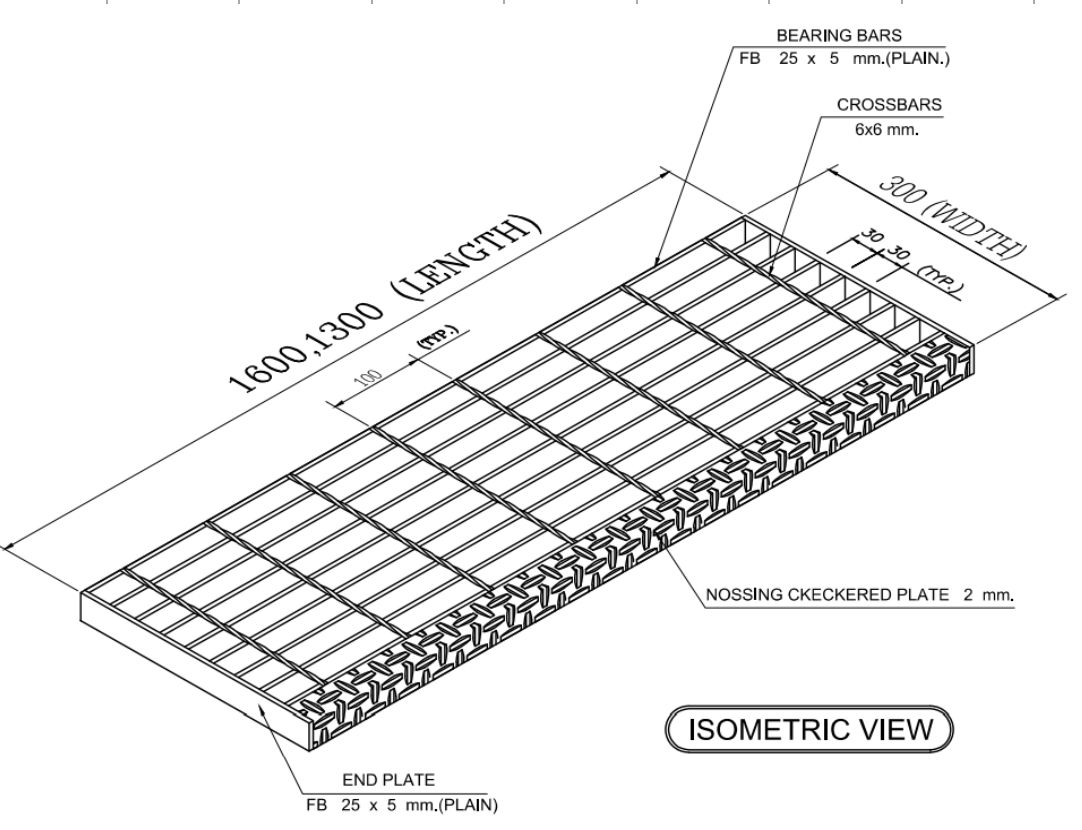

ST:4. Stair Tread Steel Galvanized Grating Size: 300x1650 mm.
( Wide x Length )

- Type GA: 255/30 mm. ( Plain )
- Flat Bar 25x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
- With Nosing Checkered Plate 2 mm. ( Thickness )
Material Grade : SS400
Heavy Duty Load

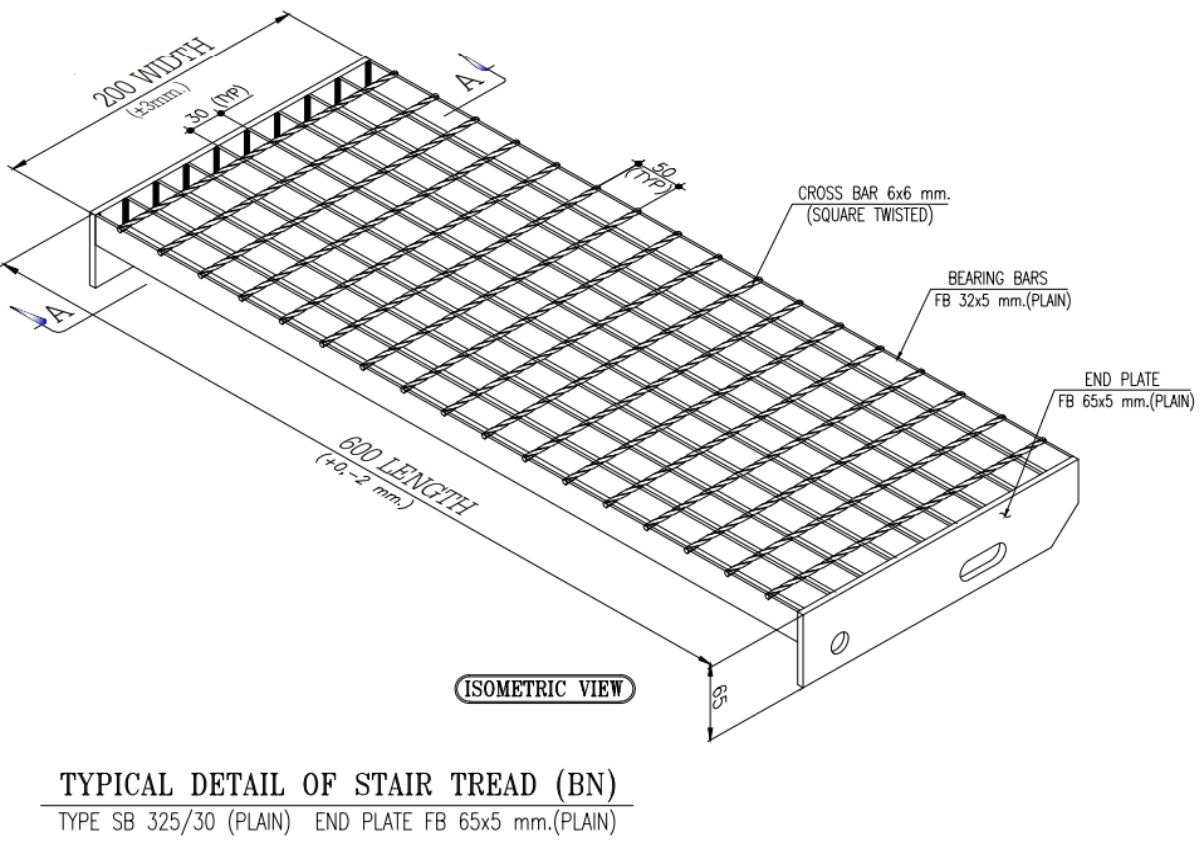

ST:5. Stair Tread Steel Galvanized Grating Size: 200x600 mm.
( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 65x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

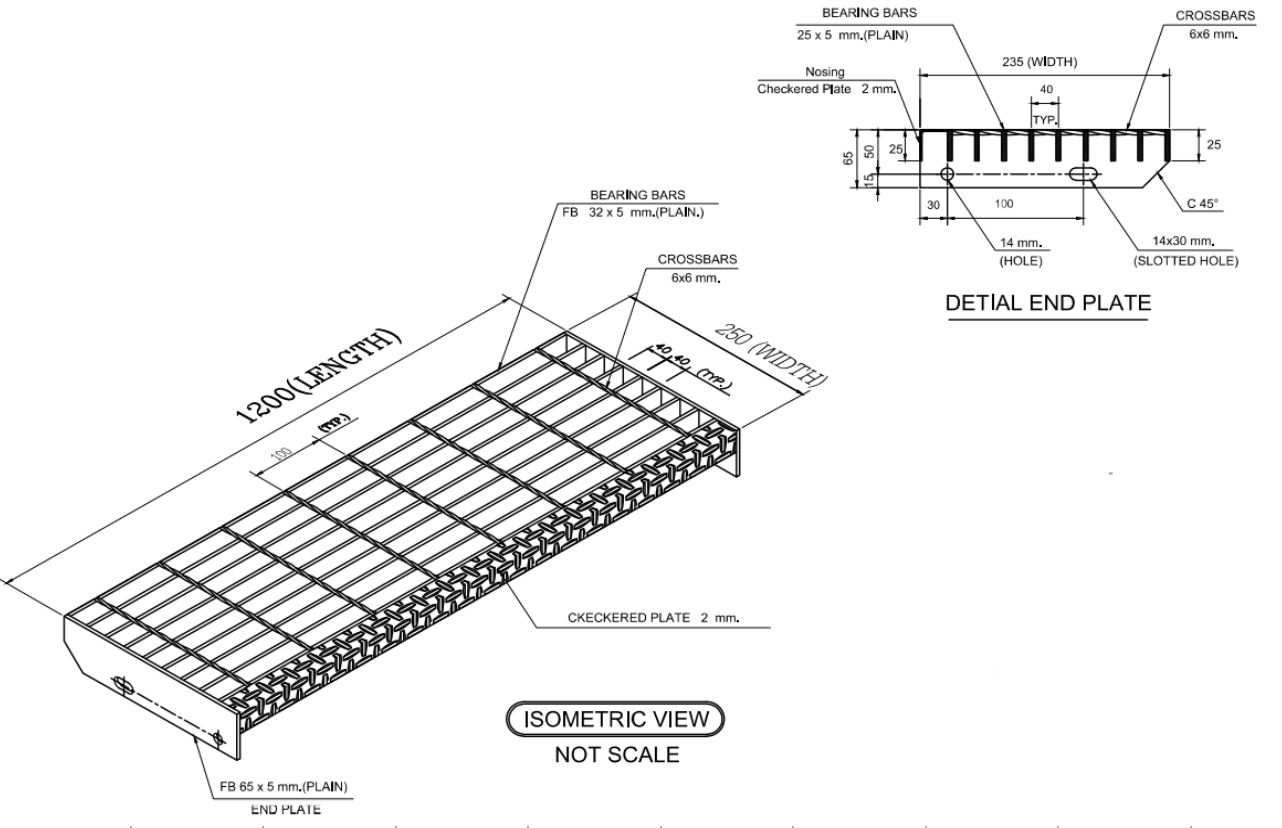

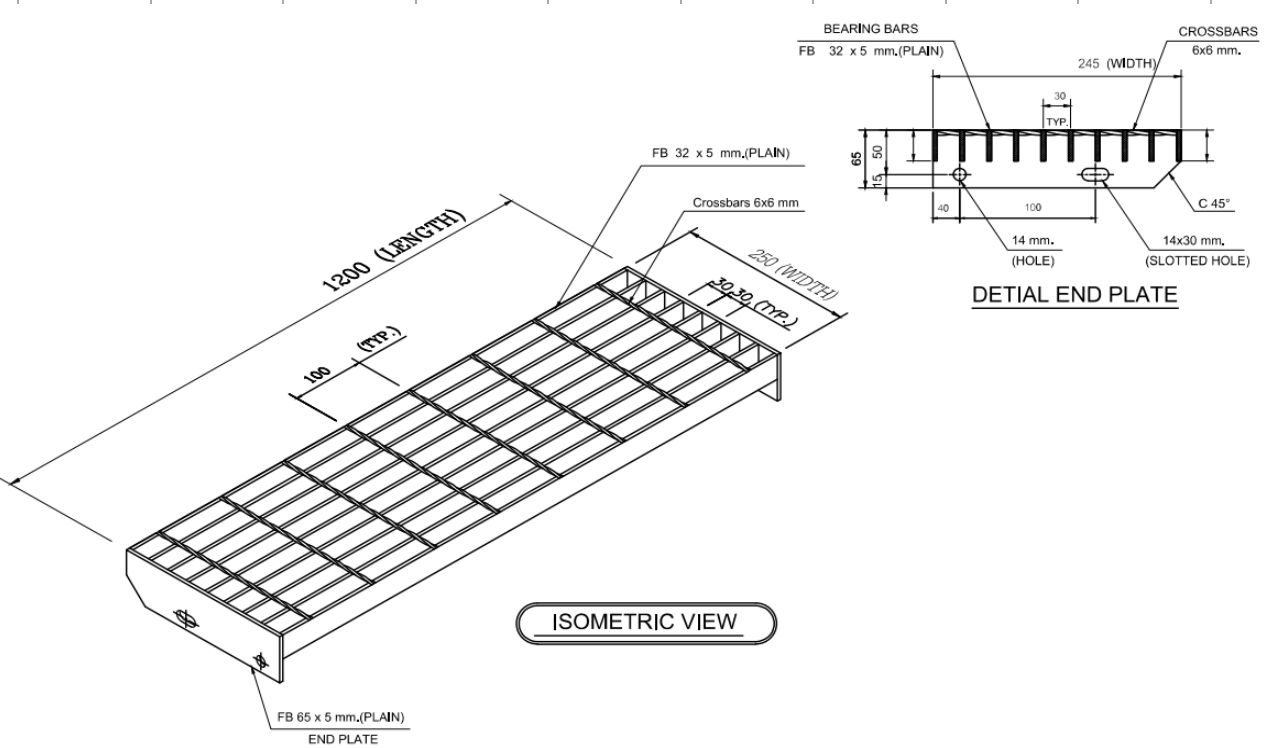

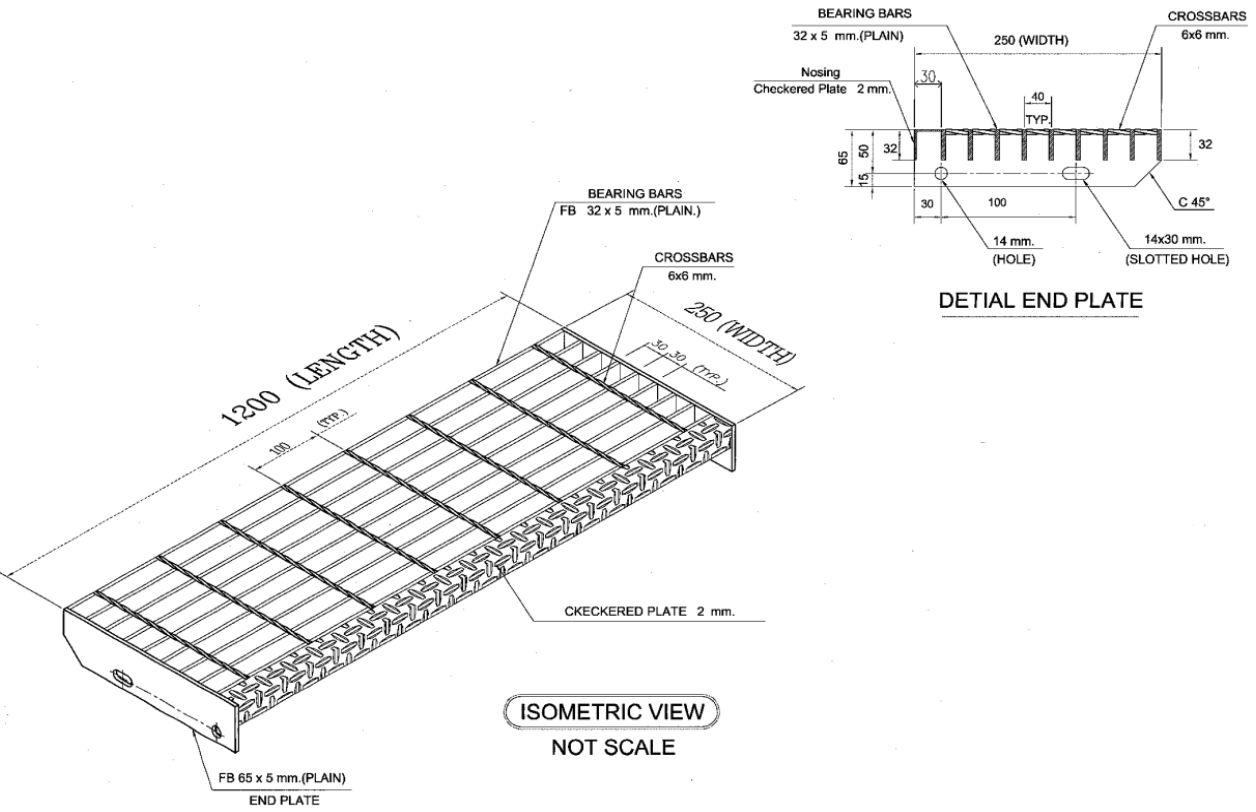

ST:6. Stair Tread Steel Galvanized Grating Size: 250x1200 mm.
( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 65x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
Material Grade : SS400
Heavy Duty Load

ST:7. Stair Tread Steel Galvanized Grating Size: 200x1650 mm.
( Wide x Length )

- Type GA: 255/30 mm. ( Plain )
- Flat Bar 25x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 25x5 mm.
- Hot-Dip Galvanized Standard ASTM A:1231-17
- With Nosing Checkered Plate 2 mm. ( Thickness )
Material Grade : SS400
Heavy Duty Load

ST:8. Stair Tread Steel Galvanized Grating Size: 250x1200 mm.
( Wide x Length )

- Type GA: 325/30 mm. ( Plain )
- Flat Bar 32x5 mm.@ 30 mm.
- Cross By Twiss Rod 6x6 mm. Pitch 100 mm.
- End With Flat bar : 65x5 mm.
- Hot-Dip Galvanized Standard ASTM A:123-17
- With Nosing Checkered Plate 2 mm. ( Thickness )
Material Grade : SS400
Heavy Duty Load

ให้คำปรึกษาโดยทีมงานที่เชี่ยวชาญ พร้อมวัดสำรวจหน้างานให้ฟรี โทร!

097-079-5592

บริษัทแมทคอน(ไทย) จำกัด คือโรงงานผลิตตะแกรงระบายน้ำ ตะแกรงทางเดินทุกชนิด ทุกเกรดวัสดุ โดยไม่ผ่านคนกลาง ให้เราเป็นหนึ่งทีมที่พร้อมแก้ปัญหาให้กับคุณ

Contacts
  • ที่อยู่
    142 อาคาร ทู แปชิฟิคเพลส ชั้น 23 ถ. สุขุมวิท แขวงคลองเตย เขตคลองเตย กรุงเทพมหานคร 10110
  • เบอร์โทร
  • สายด่วน
    • 097 079 5592
      ( ติดต่อได้ตลอด 24 ชั่วโมง )
  • อีเมลl
    mkt@matcon.co.th
  • เวลาทำการ
    จันทร์ ถึง เสาร์ 08.00น. -18.00 น.
ติดตาม

www.matcon.co.th
รับทำเว็บไซต์
